Why X.on EEG Headset ?

To make EEG technology accessible to those interested in the human brain, we present X.on as a solution that simplifies the collection of brain data while maintaining high signal quality.

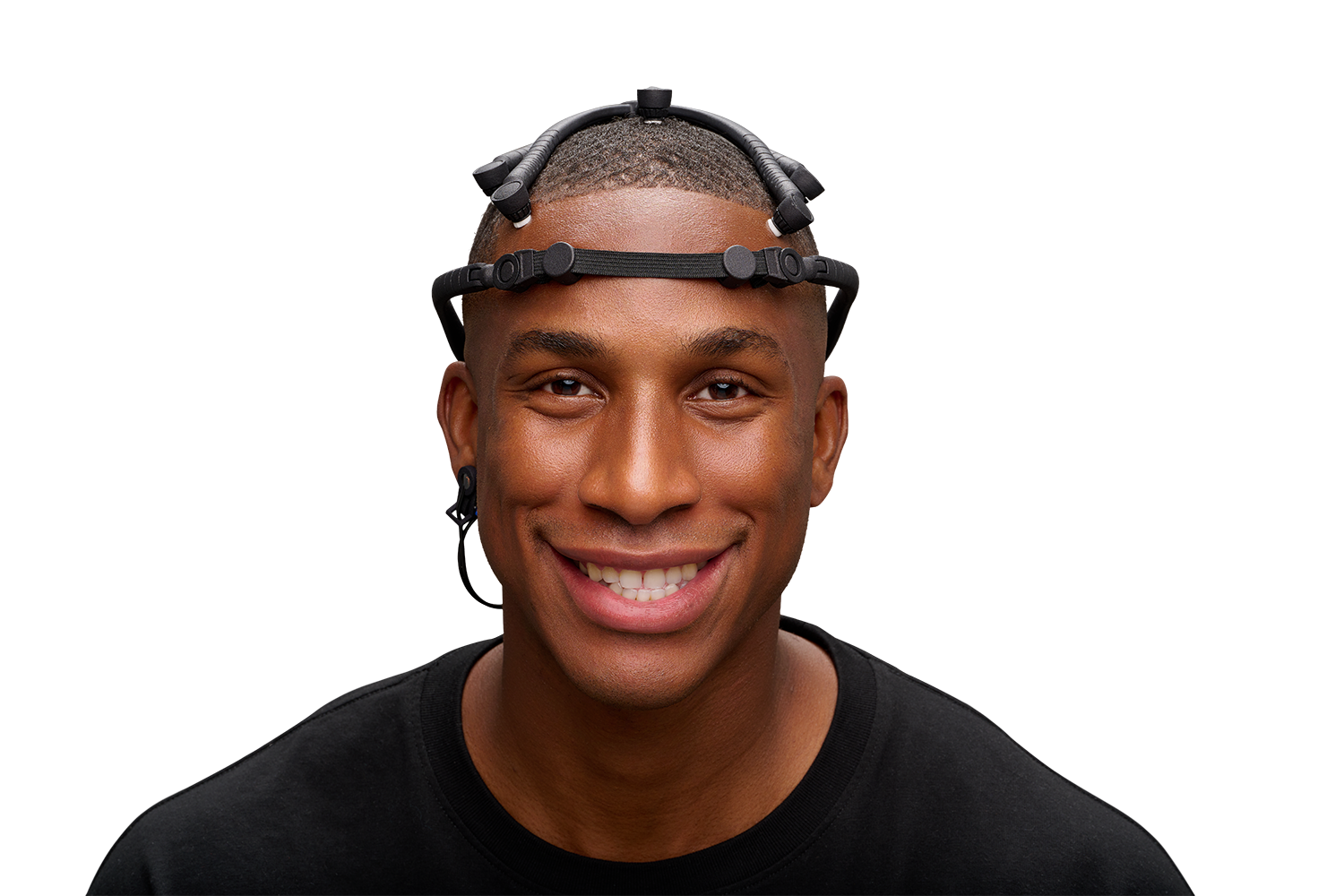

X.on EEG headset

X.on EEG Headset is :


  • Usability

Quick and easy hardware setup; intuitive control via the X.on Apps for Android™ or PC; no EEG know-how required


  • Signal Quality

Good and reliable EEG data; certified by Brain Products.



  • Data Access

Allows you to exit the black box and process your raw data offline or online via Lab Streaming Layer (LSL).



  • Design

Sleek but robust, thus combining functionality with aesthetics.



  • Budget

No worries if you are new to the EEG field or lacking grant money.

The X.on set is available at the worldwide lowest and affordable bulky price (excl. shipping, tax and customs) and includes everything you need to get started right away.



  • Flexibility

Do you need several devices deployed in the field (i.e., for education or teaching purposes)?

Or maybe you need a “take home” solution to collect data outside of the lab?

X.on gives you all the flexibility you can imagine in terms of experimental design, recording population, and more



X.on EEG headset

Do you need support to set up and start with EEG experiences ?


Features and Tech Specs




HARDWARE



  • Electrode technology :
  • Passive, sponge-based
  • EEG channels :
  • 7 (F3, F4, C3, Cz, C4, P3, P4) + ear clip (GND/REF)
  • AUX channels:
  • 1
  • Users:
  • Adolescents through adults
  • Size range:
  • 52-60 cm head circumference
  • Weight
  • ~110 g
  • Data transmission
  • Bluetooth® Low Energy (Version 5)*

         In the 2.4 GHz ISM band. There are no restrictions for its use worldwide.

  • Amplifier sampling rate:
  • 125, 250, or 500 Hz**

500 Hz functionality depends on the brand and type of the used Android™ phone and the integrated Bluetooth® module or on the Bluetooth® adapter of the PC.

  • A/D conversion:
  • 16-bit or 24-bit

24-bit functionality depends on the brand and type of the used Android™ phone and the integrated Bluetooth® module or on the Bluetooth® adapter of the PC.

  • Input range:
  • +/-9.76 mV (16-bit) ; +/-312 mV (24-bit)
  • Input impedance:
  • 0.412 GΩ
  • CMRR :
  •  >75 dB
  • Bandwidth :
  • 0.1 to 131 Hz
  • Battery:
  • Up to 5 h operation -
  • Charging via USB micro connector
  • Rechargeable lithium-ion button cell
  • Graphite-layered metal oxide (LiNixMNyCozO2)
  • CE marking
  • Yes
  • Radio Equipment Directive (RED) 2014/53/EU
  • Directive 2011/65/EU and its amendment Directive (EU) 2015/863
  • UKCA marking
  • Yes
  • Radio Equipment Regulations 2017 of 4 December 2017
  • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic - Equipment Regulations 2012 of 15 November 2016


X.on is not a medical device. The product may be used in the context of non-medical applications in order to carry out applied and fundamental research on the basis of neurophysiological methodology. The use for medical diagnosis, medical therapy, medical monitoring of vital physiological processes (such as cardiovascular functions, etc.) or other medical purposes is expressly forbidden.

Accordinggly with UE regulation X.on is permitted to be used only by professionals in the context of non-medical applications only.

Ownership cannot be transferred to non-professionals in EU.



SOFTWARE


  • X.on App for Android™ Included for Android™ v10 or higher
  • X.on App for PC Included for Windows® 10 or 11 64-bit
  • PEER app by BrainWave Software Compatible with iOS 14.1 or higher
  • X.on App for Android™ offers



FUNCTIONS


  • Impedance check, data monitoring, data saving, streaming to LSL, test signal
  • Additional phone sensors Yes; e.g., ambient light, barometric pressure, gyroscope, location (GPS)



DATA STORAGE


  • BrainVision core data format (BVCDF, .eeg, .vhdr, .vmrk) on smartphone
  • Extensible data format (XDF) on computer via LSL



RAW DATA ACCESS


  • Offline from phone (BVCDF) or from computer (XDF)
  • Online via LSL

Note: Functionality cannot be guaranteed for every device with a running Android™ v10 or higher installation.


X.on App for PC offers


  • Functions Impedance check, streaming to LSL
  • Data storage Extensible data format (XDF) on computer via LSL
  • Raw data access Offline from computer (XDF) - Online via LSL


KNOW MORE ABOUT PEER and DIY SET UP
